# Get the CSW class from the OWSLib.
from owslib.csw import CatalogueServiceWeb
from owslib.fes import PropertyIsLike

#Specify the CSW Server
my_csw = CatalogueServiceWeb('https://geoportal.bgr.de/smartfindersdi-csw/api?')

#dir(my_csw.operations)
#Check the available operations for the CSW service
for op in my_csw.operations:
    print(op.name)

# Prepare the query for listing relevant services or data sources
bremen_query = PropertyIsLike('csw:AnyText', '%Bremen%')

# Get results of the given query
my_csw.getrecords2(constraints=[bremen_query], maxrecords=10)
# Alternatively, you can use CQL (Common Query Language) expressions:
#my_csw.getrecords2(cql='csw:AnyText like "%Bremen%"')

# Learn how many records fits actually to our query:
print(my_csw.results)

# Check the available attributes and methods of any instance in the records object
print(type( next(iter(my_csw.records)) ) )

for x in my_csw.records:
  print(my_csw.records[x].identifier, ' : ', my_csw.records[x].title)

GetCapabilities
GetRecords
GetRecordById
DescribeRecord
Harvest
{'matches': 15, 'returned': 10, 'nextrecord': 11}
<class 'str'>
4466C8F0-3CA5-4098-9869-DBA4269CF0C3  :  Bodenübersichtskarte 1:200.000 (BÜK200) - CC3110 Bremerhaven
3EE608D6-D46F-4406-933F-2492C55308D3  :  Bodenübersichtskarte 1:200.000 (BÜK200) - CC3118 Hamburg-West
AC3815DC-663E-4325-9283-CAC631989F15  :  Karte der oberflächennahen Rohstoffe der Bundesrepublik Deutschland 1:200.000 (KOR200) - CC 3118 Hamburg-West
B36CD520-A63B-4DEF-8F83-79DE64E07236  :  Bodenübersichtskarte 1:200.000 (BÜK200) - CC2310 Helgoland
8b70fe0f-0b03-477b-a3cd-c0f13a2c41b2  :  3D Modell des tieferen Untergrundes des Norddeutschen Beckens
66CFEE61-8B60-4DA7-9632-56753CE0BFE8  :  Schutzpotenzial der Grundwasserüberdeckung
a3f2f6a5-120c-4732-97a0-1db01f26557d  :  Processed seismic data of Cruise HE242
d973f1af-db9f-4632-bd05-8964cc906b38  :  Processed seismic data of Cruise AL278 2006
8BEBDE77-8C6A-48D5-BBAA-C7D7EF01D85D  :  Schutzpotenzial der Grundwasserüberdeckung (WMS)
2bd333c5-ed2b-4bc2-9c43-eb735ba37f6c  :  Hubschrauber-Elektromagnetik (HEM) Gebiet 196 Gnarrenburg

from owslib.wms import WebMapService as wms

# Add a WebMapService object using its alias
my_wms = wms('https://geoservice.dlr.de/eoc/elevation/wms?')

# Inspect the service type, version and title
print(my_wms.identification.type)
print(my_wms.identification.version)
print(my_wms.identification.title, '\n')

# Check the available operations for the WMS service
ops_list = []
for op in my_wms.operations:
    ops_list.append(op.name)
print(ops_list, '\n')

# Check the layers available in the WMS service
print( list(my_wms.contents) )

# Check the supported image formats by the WMS service
print(my_wms.getOperationByName('GetMap').formatOptions)

OGC:WMS
1.1.1
EOC Elevation Map Service

['GetCapabilities', 'GetMap', 'GetFeatureInfo', 'DescribeLayer', 'GetLegendGraphic', 'GetStyles']

['srtm_x-sar_mosaic', 'srtm_x-sar_hillshade_mosaic', 'srtm_x-sar_dem_mosaic', 'TDM90_AM2', 'TDM90_AMP', 'TDM90_COM', 'TDM90_COV', 'TDM90_DEM', 'TDM90_HEM', 'TDM90_LSM', 'TDM90_WAM', 'TDM_POLARDEM90_ANT_DEM', 'TDM_POLARDEM90_ANT_HSC', 'TDM_POLARDEM90_ANT_HSM', 'TDM_POLARDEM_ANT_COASTLINE', 'srtm_x-sar_hem_mosaic']
['image/png', 'application/atom xml', 'application/atom+xml', 'application/bil', 'application/bil16', 'application/bil32', 'application/bil8', 'application/geopackage+sqlite3', 'application/json;type=geojson', 'application/json;type=topojson', 'application/json;type=utfgrid', 'application/openlayers', 'application/openlayers2', 'application/openlayers3', 'application/pdf', 'application/rss xml', 'application/rss+xml', 'application/vnd.google-earth.kml', 'application/vnd.google-earth.kml xml', 'application/vnd.google-earth.kml+xml', 'application/vnd.google-earth.kml+xml;mode=networklink', 'application/vnd.google-earth.kmz', 'application/vnd.google-earth.kmz xml', 'application/vnd.google-earth.kmz+xml', 'application/vnd.google-earth.kmz;mode=networklink', 'application/vnd.mapbox-vector-tile', 'application/x-protobuf;type=mapbox-vector', 'application/x-sqlite3', 'atom', 'geojson', 'geopackage', 'geopkg', 'gpkg', 'image/bil', 'image/dds', 'image/geotiff', 'image/geotiff8', 'image/gif', 'image/gif;subtype=animated', 'image/jpeg', 'image/png8', 'image/png; mode=8bit', 'image/svg', 'image/svg xml', 'image/svg+xml', 'image/tiff', 'image/tiff8', 'image/vnd.jpeg-png', 'image/vnd.jpeg-png8', 'image/webp', 'kml', 'kmz', 'mbtiles', 'openlayers', 'pbf', 'rss', 'text/html; subtype=openlayers', 'text/html; subtype=openlayers2', 'text/html; subtype=openlayers3', 'topojson', 'utfgrid']

import requests
from IPython.display import Image

# Decide to which extent must be rendered with which CRS. Use your GIS app if you need.

# SAMPLE GETMAP REQUEST WAS:
sample_request = """https://geoservice.dlr.de/eoc/elevation/wms?\
SERVICE=WMS\
&VERSION=1.3.0\
&REQUEST=GetMap\
&BBOX=47,9.05,47.2,9.25\
&CRS=EPSG:4326\
&WIDTH=1200\
&HEIGHT=1200\
&LAYERS=srtm_x-sar_dem_mosaic\
&STYLES=\
&FORMAT=image/png\
&DPI=96\
&MAP_RESOLUTION=96\
&FORMAT_OPTIONS=dpi:96\
&TRANSPARENT=TRUE"""

# So, you can test it with requests library too:
# test_wms = requests.get(sample_request)

# Check the available methods and attributes for the requests object:
#print(dir(test_wms))

# Render the response
# Image(test_wms.content)

# If your test goes well with the sample URL, you can specify your own request

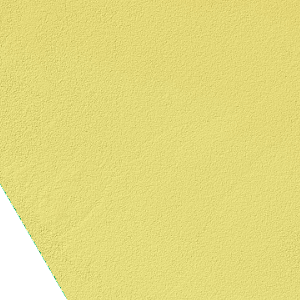

img = my_wms.getmap(
    layers=['srtm_x-sar_mosaic'],
    size=[300, 300],
    srs="EPSG:4326",
    bbox=[47,9.05,47.2,9.25],
    format="image/png")

Image(img.read())png8

from owslib.wmts import WebMapTileService as wmts

my_wmts = wmts('https://sgx.geodatenzentrum.de/wmts_basemapde')

print(my_wmts.identification.type)
print(my_wmts.identification.version)
print(my_wmts.identification.title, '\n')

# Check the available layers for the WMTS service
print( list(my_wmts.contents), '\n' )

# Check the available TileMatrixSets in the WMTS service
print(my_wmts.tilematrixsets, '\n')

# Store the Capabilities document on to your computer
with open("responses/samples_for_discussion/my_wmts_servicexml.xml", "wb") as wmts_xml:
        wmts_xml.write(my_wmts.getServiceXML())
        print ('File (' + wmts_xml.name + ') has been saved.')

OGC WMTS
1.0.0
WMTS DE BASEMAP.DE WEB RASTER

['de_basemapde_web_raster_farbe', 'de_basemapde_web_raster_grau']

{'DE_EPSG_25832_ADV': <owslib.wmts.TileMatrixSet object at 0x7e95475eb4a0>, 'DE_EPSG_3857_ADV': <owslib.wmts.TileMatrixSet object at 0x7e95475e80e0>, 'DE_EPSG_25833_ADV': <owslib.wmts.TileMatrixSet object at 0x7e95475e9c10>, 'GLOBAL_WEBMERCATOR': <owslib.wmts.TileMatrixSet object at 0x7e95475ead20>}

File (responses/samples_for_discussion/my_wmts_servicexml.xml) has been saved.

img = my_wmts.gettile(
    layer='de_basemapde_web_raster_farbe',
    tilematrixset="DE_EPSG_25832_ADV",
    tilematrix='01',
    row=1,
    column=1,
    format="image/png")

Image(img.read())

from owslib.wfs import WebFeatureService as wfs

my_wfs = wfs('https://gdi.berlin.de/services/wfs/welterbe?')

# Inspect the service type, version and title
print(my_wfs.identification.type)
print(my_wfs.identification.version)
print(my_wfs.identification.title, '\n')

# List available operations with a Python comprehension (shorten function)
op_list = [op.name for op in my_wfs.operations]
print( op_list , '\n')

# Check the available contents for the WFS service
print( list(my_wfs.contents), '\n' )

# Get help document for a selected operation
#help(my_wfs.getfeature)

# Sample GetFeature Request URL:
# https://gdi.berlin.de/services/wfs/welterbe?
#SERVICE=WFS&REQUEST=GetFeature&VERSION=2.0.0&
#TYPENAMES=welterbe:welterbe&STARTINDEX=0&COUNT=3&SRSNAME=urn:ogc:def:crs:EPSG::25833

my_objects = my_wfs.getfeature(
    typename = ['welterbe:welterbe'],
    srsname = 'urn:ogc:def:crs:EPSG::25833',
    maxfeatures = 3,
    startindex = 0
)

# Check the type of the request.
# print( type(my_objects) )

# Check the supported image formats by the WMS service
print(my_wfs.getOperationByName('GetFeature').formatOptions)

# Store the response file on to your computer
with open("responses/samples_for_discussion/my_wfs_response.gml", "wb") as wfs_gml:
        wfs_gml.write(my_objects.read())
        print ('File (' + wfs_gml.name + ') has been saved.')

WFS
1.0.0
Welterbestätten Berlin

['GetCapabilities', 'DescribeFeatureType', 'GetFeature']

['welterbe:welterbe']

['{http://www.opengis.net/wfs}GML2']
File (responses/samples_for_discussion/my_wfs_response.gml) has been saved.

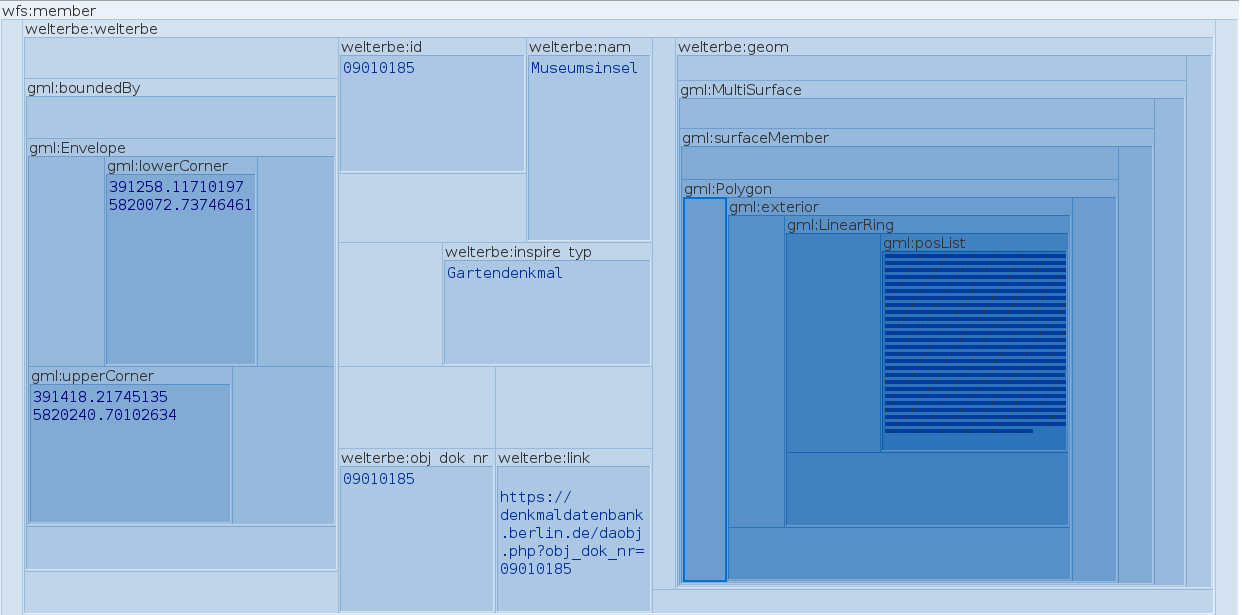

import xmltodict as xd
import pprint

with open("responses/samples_for_discussion/my_wfs_response.gml", "r") as stored_wfs:
    wfs_text = stored_wfs.read()
    wfs_text_enc = wfs_text.encode('utf-8')
    my_dict = xd.parse(wfs_text_enc)

my_pp = pprint.PrettyPrinter(indent=4)
my_pp.pprint(my_dict['wfs:FeatureCollection']['gml:featureMember'][1]['welterbe:welterbe']['gml:boundedBy'])

{   'gml:Box': {   '@srsName': 'http://www.opengis.net/gml/srs/epsg.xml#25833',
                   'gml:coordinates': {   '#text': '393520.19630308,5822766.23041044 '
                                                   '393944.72582015,5823161.95202459',
                                          '@cs': ',',
                                          '@decimal': '.',
                                          '@ts': ' '}}}

from owslib.ogcapi.features import Features as ftr
import pprint

my_pp = pprint.PrettyPrinter(indent=2)

my_api = ftr('https://ogc-api.nrw.de/lika/v1/')

# Print the Conformance document
# print(my_pp.pprint(my_api.conformance()))

print( list(my_api.feature_collections()) , '\n')

# Print the information of parcel collection
print( my_api.collection('flurstueck')['id'] )
print( my_api.collection('flurstueck')['title'] )
print( my_api.collection('flurstueck')['extent']['temporal'] , '\n')

# Check the queryables for a specific collection
# Sample request: https://ogc-api.nrw.de/lika/v1/collections/flurstueck/queryables?f=json
# print(my_pp.pprint(my_api.collection_queryables('flurstueck')))

# Check an instance from the collection
# Sample request : https://ogc-api.nrw.de/lika/v1/collections/flurstueck/items/05510005500013______?f=json
my_sample = my_api.collection_item(collection_id='flurstueck', identifier='05510005500013______')
#print( my_pp.pprint(my_sample) )

# You can also list features with using following queryables:
# gemaschl: Gemarkung-Schlüssel: district key
# flur: Bezeichnung/Name der Flur: Description / name of the field
# flstnrzae: Zähler der Flurstücksnummer: Counter of the parcel number
my_query = my_api.collection_items('flurstueck', gemaschl='055100', flur='55', flstnrzae='13')
# my_pp.pprint(my_query)

['flurstueck', 'flurstueck_punkt', 'gebaeude_bauwerk', 'katasterbezirk', 'nutzung', 'nutzung_flurstueck', 'verwaltungseinheit']

flurstueck
Flurstück
{'interval': [['2008-05-20T12:10:43Z', '2023-09-08T04:24:02Z']], 'trs': 'http://www.opengis.net/def/uom/ISO-8601/0/Gregorian'}

from owslib.wcs import WebCoverageService as wcs
from IPython.display import Image

# <INSTANCE_ID> is the user token. Replace it with yours.
# Murat Kendirs token : 81ee4fd4-3ef6-4a0e-b2fd-054e6780f32d

my_wcs = wcs('https://sh.dataspace.copernicus.eu/ogc/wcs/<INSTANCE_ID>?')

print(my_wcs.identification.type)
print(my_wcs.identification.version)
print(my_wcs.identification.title)

# List available operations with a Python comprehension
op_list = [op.name for op in my_wcs.operations]
print( op_list , '\n')

# Print available coverages
print(my_wcs.contents.keys(), '\n')

# Print the Bounding Box for the coverage
print(my_wcs.contents['TRUE_COLOR'].boundingboxes, '\n')

# Print available output options:
print( my_wcs.getOperationByName('GetCoverage').methods )

#help(my_wcs.getCoverage)

cov = my_wcs.getCoverage(
    identifier="TRUE_COLOR",
    format="image/png",
    crs="EPSG:3857",
    response_crs="EPSG:3857",
    bbox=(1245054,6061402,1327254,6203842),
    version="1.0.0",
    width=922 ,
    height=1598)

requested_coverage = cov.read()

# Store the Capabilities document on to your computer
with open("responses/samples_for_discussion/my_wcs_sample_query.png", "wb") as wcs_sample:
        wcs_sample.write(requested_coverage)
        print ('File (' + wcs_sample.name + ') has been saved.')

Image(cov.read())

OGC:WCS
1.0.0
Sentinel Hub WCS service - Murat Kendir
['GetCapabilities', 'DescribeCoverage', 'GetCoverage']

dict_keys(['AGRICULTURE', 'ARI1', 'ARI2', 'ATMOSPHERIC_PENETRATION', 'B01', 'B02', 'B03', 'B04', 'B05', 'B06', 'B07', 'B08', 'B09', 'B10', 'B11', 'B12', 'B8A', 'BAI', 'BATHYMETRIC', 'CHL_RED_EDGE', 'CRI1', 'CRI2', 'EVI', 'EVI2', 'FALSE_COLOR', 'FALSE_COLOR_URBAN', 'GEOLOGY', 'GRVI1', 'LAI_SAVI', 'MOISTURE_INDEX', 'MSAVI2', 'NBR_RAW', 'NDVI', 'NDVI_GRAY', 'NDVI_GREEN_GRAY', 'NDWI', 'PSRI', 'PSRI_NIR', 'RED_EDGE_NDVI', 'RE_NDWI', 'RGB_11_8_3', 'RGB_4_3_1', 'RGB_8_11_12', 'RGB_8_11_4', 'RGB_8_5_4', 'RGB_8_6_4', 'SAVI', 'SWIR', 'TRUE_COLOR'])

[{'nativeSrs': 'EPSG:3857', 'bbox': (-20037508.342789, -20037508.342789, 20037508.342789, 20037508.342789)}]

[{'type': 'Get', 'url': 'https://sh.dataspace.copernicus.eu/ogc/wcs/81ee4fd4-3ef6-4a0e-b2fd-054e6780f32d?'}]
File (responses/samples_for_discussion/my_wcs_sample_query.png) has been saved.

docker run --interactive --tty \
--publish 8080:8080 \
--volume "./shared_w_geoserver":"/home/murat/geodata" \
-e GEOSERVER_ADMIN_USER=murat \
-e GEOSERVER_ADMIN_PASSWORD=password \
kartoza/geoserver

Samples for Discussion¶

Classification of OGC Web Services¶

CSW Servers (Catalog Service for the Web)¶

WMS Servers (Web Map Service)¶

WMTS Servers (Web Map Tile Service)¶

WFS Services (Web Feature Service)¶

OGC API - Features services¶

WCS Services (Web Coverage Service)¶

Accessing to CSW services with Python¶

Accessing to WMS services with Python¶

Accessing to WMTS services using Python¶

Accessing to WFS with Python¶

Parsing XML/GML in Python¶

Accessing to OGC API - Features with Python¶

Accessing to WCS services with Python¶

Run Kartoza/Geoserver to experience publishing OGC web services¶
